Plate And Frame Exchanger

Plate and Frame Exchanger, also known as Plate Heat Exchanger, is a type of heat exchanger that uses thin, metal plates to facilitate the transfer of heat between two fluids. The plate-and-frame design of the exchanger allows for a large heat transfer area within a compact structure, making it highly efficient and versatile. Plate and Frame Exchangers are commonly used in HVAC, chemical processing, power generation, food and beverage, and other industries where efficient heat transfer is required.

No.1：Description of plate and frame heat exchanger

Plate and frame exchanger, also known as plate heat exchanger, is a device used for transferring heat from one fluid to another. It consists of a series of thin, corrugated metal plates that are stacked together and separated by gaskets. The plates are typically made of stainless steel or titanium and are designed to maximize heat transfer between the fluids.

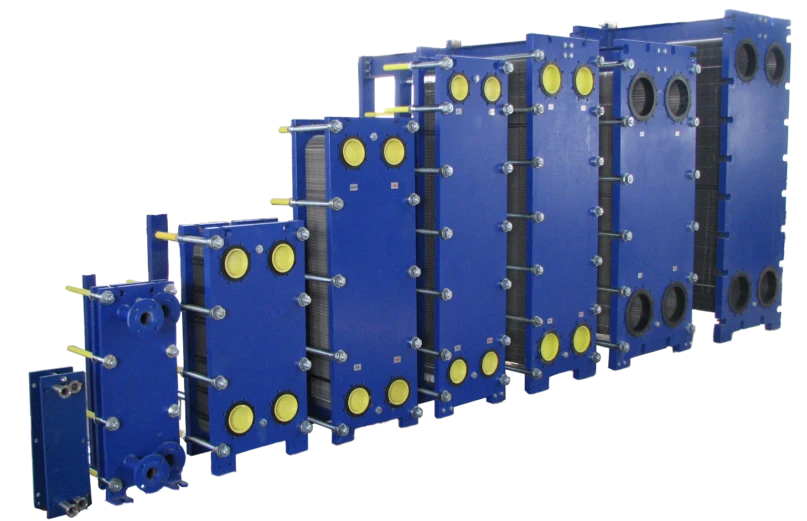

PHE 1

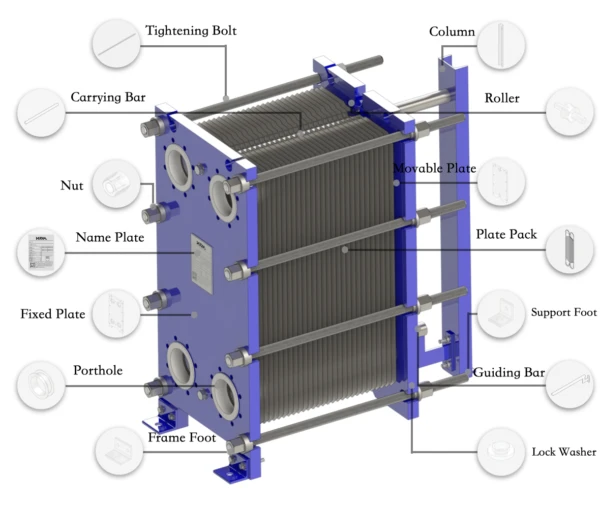

PHE Structure

NO 2：Product parameter of gasketed plate heat exchanger

Item	life water heating plate heat exchanger
Brand	Exheat
Plate material	Stainless steel 0.5mm 0.6mm 0.7mm 0.8mm 1mm
Gasket material	NBR HNBR EPDM HEPDM VITON FKM Silicone
Frame material	Painted Carbon steel or stainless steel
Color of frame	blue or customed color
Connection type	flange or thread
Flange standard	ANSI ASME BS BA JIS DIN GB ISO
Tightening bolt	M24 M30 M39
Design pressure	highest 20mpa, lowest 10Mpa
Work pressure	normal 12.5Mpa
MOQ	1 set
Package	polywood case
Warranty	one year
OEM	Can make replacement

NO 3：Product working parameters for caculations

What is media name of hot side

1.Inlet and outlet temperature of hot side

2.flow rate of hot media

3.Inlet and outlet temperature of cold side

4.flow rate of cold media

No 4.：Application of plate and frame heat exchanger

chemical processing
food and beverage production
HVAC systems
oil and gas production
power plants for heat recovery and cooling applications.
Data Center Cooling information field
energy field,such as fuel cell.solar energy.petrochemical and gas
pulp industry.such as paper and pulp.heating slurry wash.bleaching technology
metallurgical industry

No 5. Advantage of Exheat plate and frame heat exchanger

High heat transfer efficiency
Small space required
low temperature difference

Exheat has rich experience in the heating and cooling of complex process media and waste heat recovery, we can provide customers with full range of heat exchanger design calculations and product customization for all working conditions, we always insist on finding the best balance point in the overall consideration of equipment investment and long-term operating costs, choose us, let us work together

FQA

Q1: Are you a manufactuer or trading company?

A1: We are Manufacturing & Trading Company

Q2: How can I get a sample to check your quality?

A2: Our sample is free.

Q3: How long can I expect to get the sample?

A3: Normally 7 days

Q4: Packaging & Shipping:

A4: Polywood case, air or boat, DHL,TNT,Fedex

Q5: What are your main products?

A5: Plate heat exchanger and spare parts

Q6: What is your terms of delivery?
